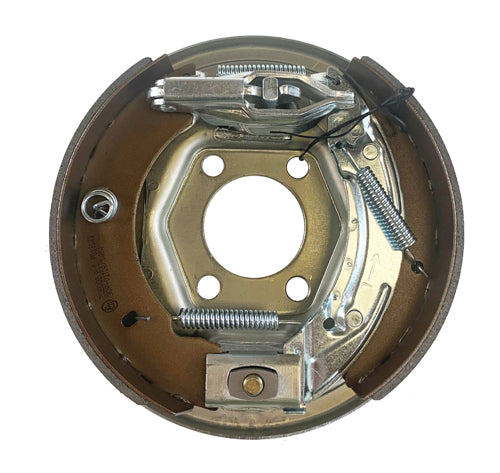

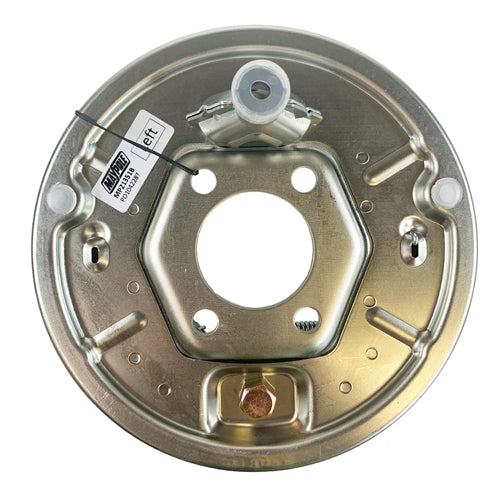

Knott Style Aftermarket Backplate 200x50 Complete

Knott Style Aftermarket 200 x 50 Bolt-On Backplate Complete Set

This pre-assembled set comes complete with brake shoes, springs, expander, adjuster, eyelet, half shell, and 4 x M12x20mm fixing bolts ready to just bolt on

Enough to replace one axle (we recommend replacing a full axle at the same time)

Fits Ifor Williams Trailers made after January 1996

Central hole diameter - 58mm

Mounting holes - 4 x 12.5mm

Hole centres - 50 x 96mm

Part number - MP21351B
                                          P000140
